Flow through nozzle

Objective

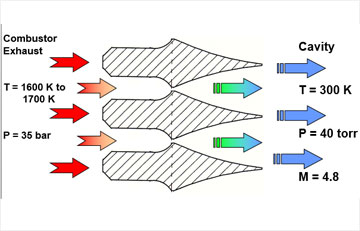

Study of flow through the nozzle to find the temperature contour, deflection and stress due to the flow of gas in the nozzle in time domain



Methodology

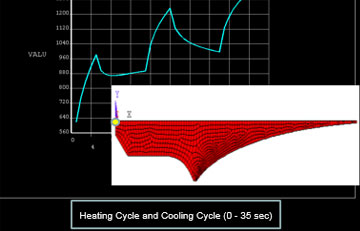

  • 2D steady state flow analysis (Heating and Cooling Cycles)
  • Bulk temperature of the nozzle
  • 2D Transient Thermal analysis
  • Temperature in time domain

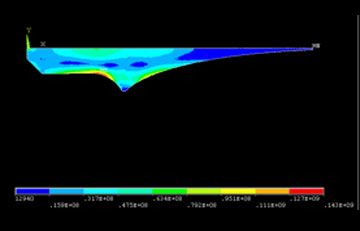

  • 2D Static Structural Analysis
  • Stress and Deflection on the nozzle



Technology

CFD tool



image01 image01 image01 image01
